A collection of 143 Animated GIFs showing some of the machines and processes used to mass produce goods.

All derived from the TV Series "How It's Made." - One of my all time favorite shows!

Warning: staring too long at some of these may induce hypnosis/sleep!

Food Production Machines:

Fortune Cookies:

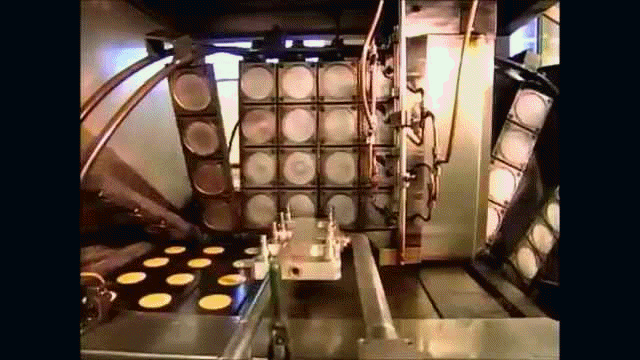

• Fortune Cookies making machine - Beginning of Process

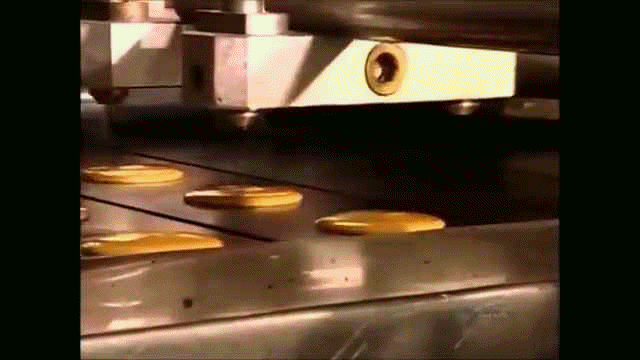

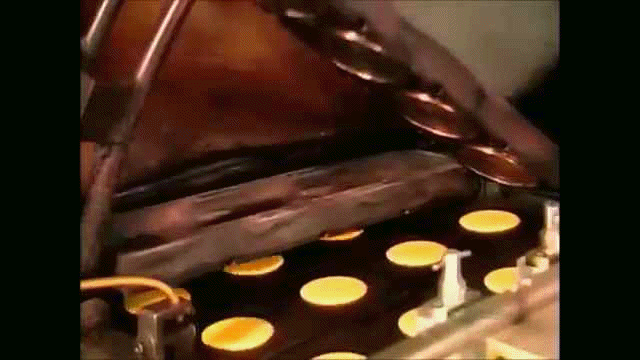

• Fortune Cookies making machine - Batter squirted onto moving griddles
• Fortune Cookies making machine - Lids Close as the Cookie blanks Cook
• Fortune Cookies making machine - Moving from the griddles to land on top, in the center, of the cookie folding molds
• Fortune Cookies making machine - Fortune drops on top of cookie JUST BEFORE prongs fold the fortune cookie into a mold

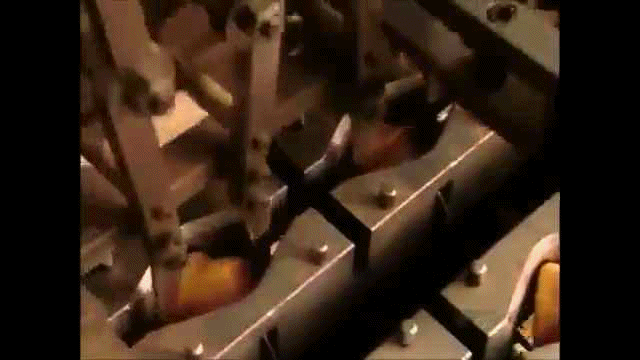

• Fortune Cookies making machine - Close up of the prongs folding fortune cookies into the cookie molds
  Dangerous! Ends go down ... Edges go up ... You go Sleep ... Better than Counting Sheep

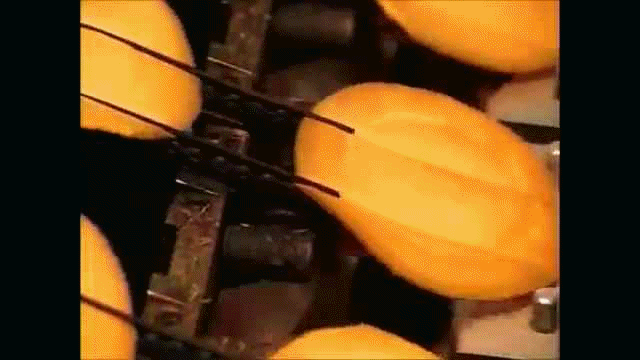

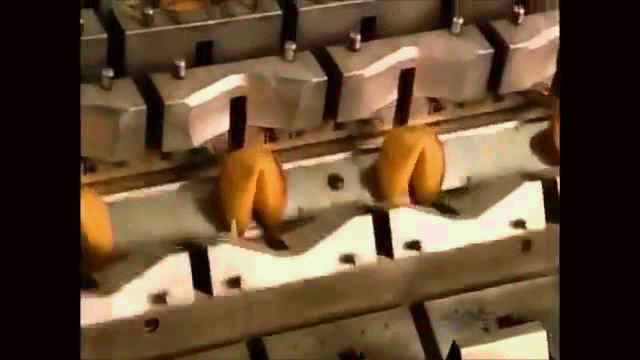

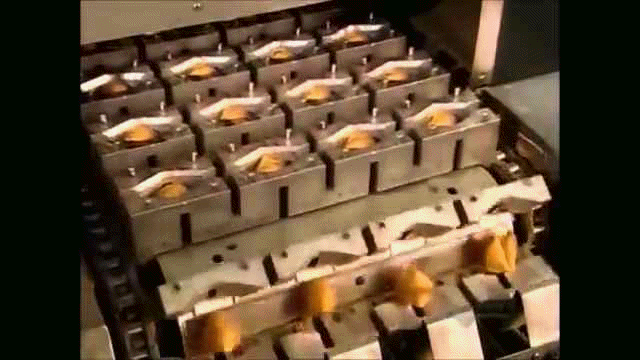

• Fortune Cookies making machine - Folded cookies cool and harden in the molds before ...
• Fortune Cookies making machine - They are dumped out to a conveyor and go off to packaging.

Frozen Pancakes:

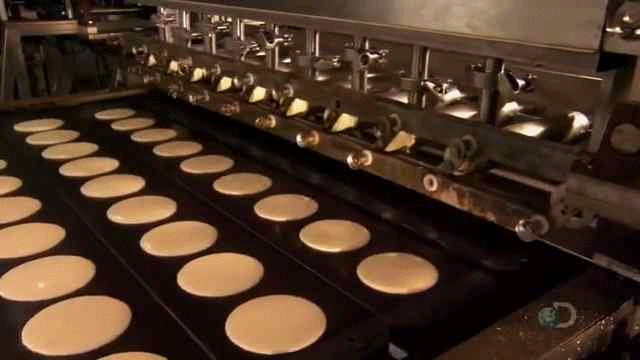

• Frozen Pancakes - Batter is squirted on moving Griddle Plates

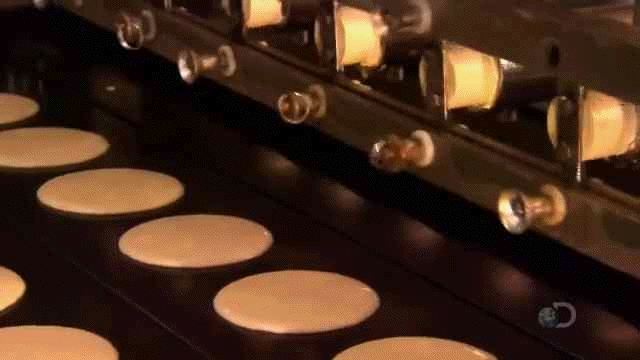

• Frozen Pancakes - Close up of the above GIF
• Frozen Pancakes - Side View of the Batter Depositors pumping out Pancakes

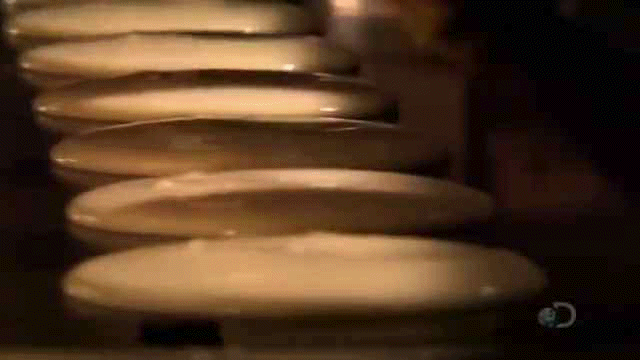

• Frozen Pancakes - Close up of the above GIF

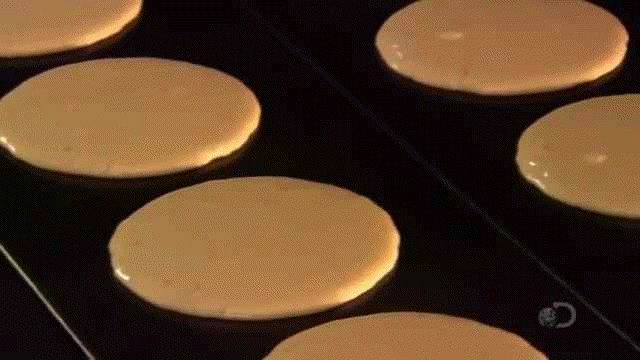

• Frozen Pancakes - Are cooked as they are moved along on the Griddle Plates until 1 side is Done
• Frozen Pancakes - Close up of the above GIF
• Frozen Pancakes - When 1 side is Done a row of Robot Spatulas flips them over to cook the other side
• Frozen Pancakes - and there are actually 2 rows of pancake flippers that handle every other row
  Dangerous!!! Entire robotic factory in clockwork sync!!! Hypnotize!!!!!!

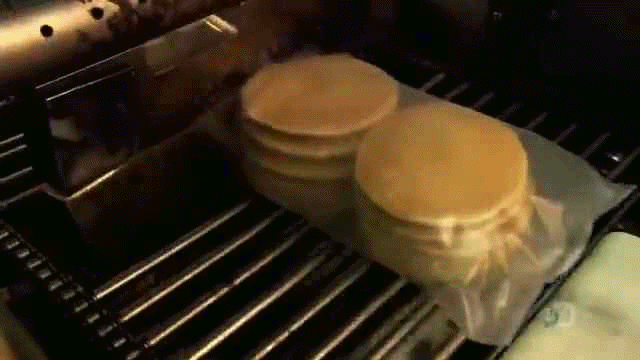

• Frozen Pancakes - Are flash frozen and stacked so a sealing blade can seal them in a plastic tube
• Frozen Pancakes - After being sealed they are boxed and it's off to Market with them.

Gummy Worms:

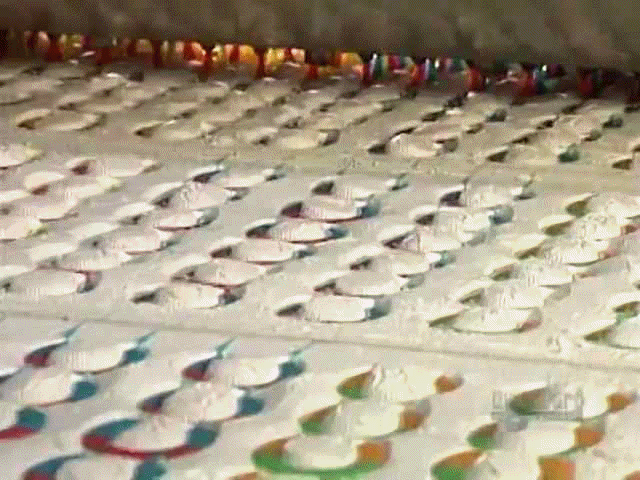

• Gummy Worms: are injected as a thick syrup into worm shaped molds made out of Corn Starch

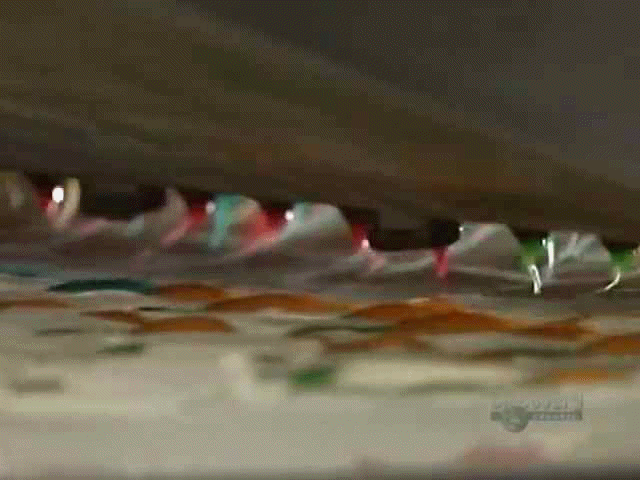

• Gummy Worms: A closer, side angle of view ... as depositors squirt hot candy into the molds pre-pressed into the tray of Corn Starch

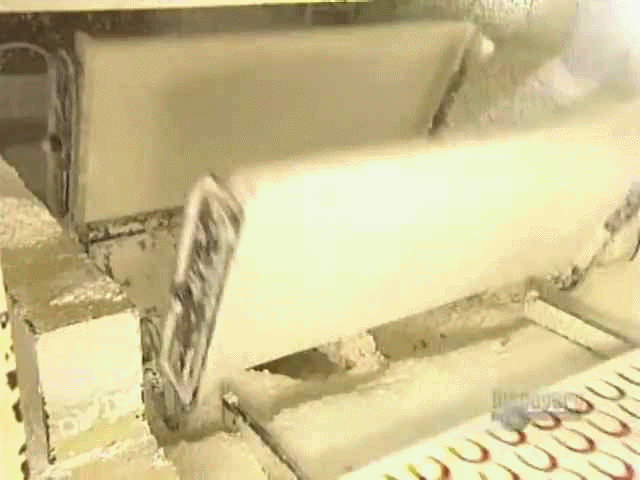

• Gummy Worms: After sitting and solidifying for a day in their tray - the worms and the Corn Starch molds are dumped out

Ice Cream - 50/50 Bars:

• Ice Cream - 50/50 Bars: These are made in 4 steps on a moving conveyor of metal molds

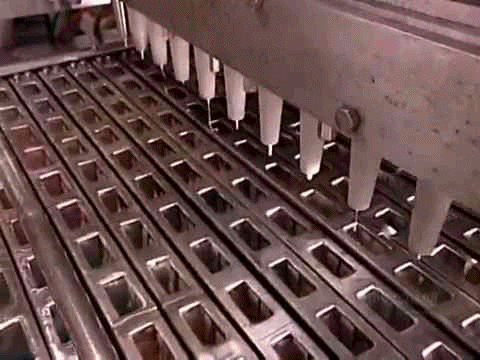

• Ice Cream - 50/50 Bars: The icy shell is squirted into the mold

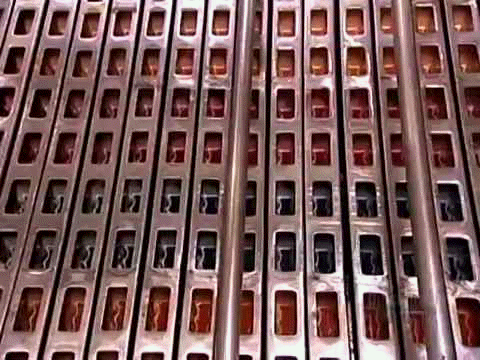

• Ice Cream - 50/50 Bars: Then the molds are lowered into a flowing stream of super-chilled (way below Zero) Brine
• Ice Cream - 50/50 Bars: The Brine chills the molds to below Zero and the liquid begins to freeze

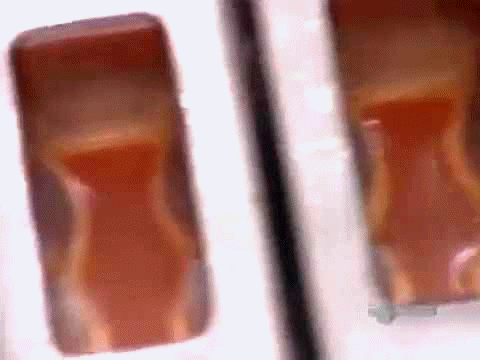

• Ice Cream - 50/50 Bars: The icy shell quickly freezes in a layer just inside the mold's walls
• Ice Cream - 50/50 Bars: The length of time it takes an icy shell to build up is designed into the length of the production line

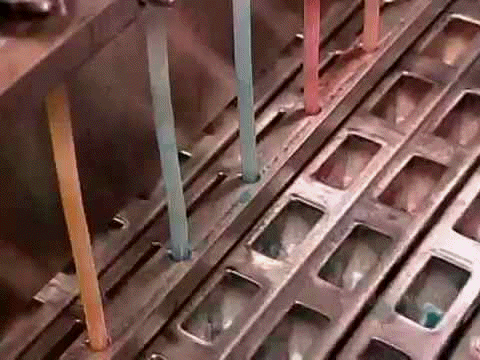

• Ice Cream - 50/50 Bars: Suction lines dip in and suck out the remaining liquid for reuse at the start
• Ice Cream - 50/50 Bars: The empty Icy shells continue down the line to freeze SOLID
• Ice Cream - 50/50 Bars: See - you can peer right down into the hollow icy shell's bottom

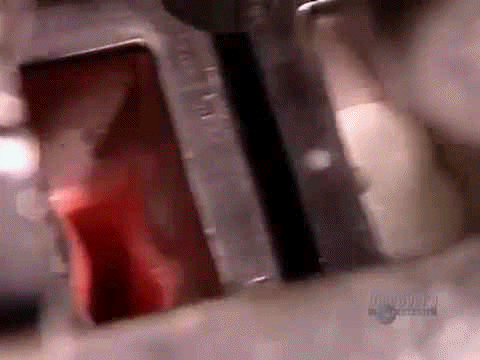

• Ice Cream - 50/50 Bars: Now for the Ice cream part to meet its Shell
• Ice Cream - 50/50 Bars: The Machine squirts in enough to cover the shell completely

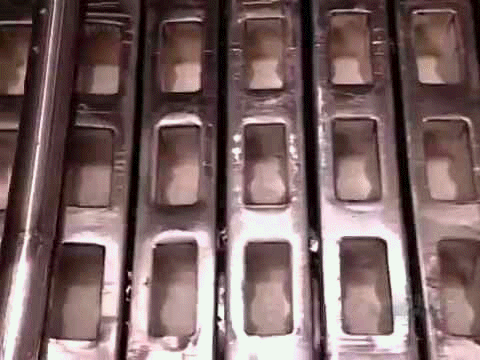

• Ice Cream - 50/50 Bars: further down the line the molds go - to freeze the ice cream in the center, now
• Ice Cream - 50/50 Bars: Then, just BEFORE the center freezes solid, a stick is inserted
• Ice Cream - 50/50 Bars: 50/50 Bar, now with stick, goes down the line until it is frozen SOLID.
• Ice Cream - 50/50 Bars: The molds move out of the Brine river and into a tank of cool water
• Ice Cream - 50/50 Bars: This isn't warm enough to melt the bar - but it can now be pulled out of the mold easily

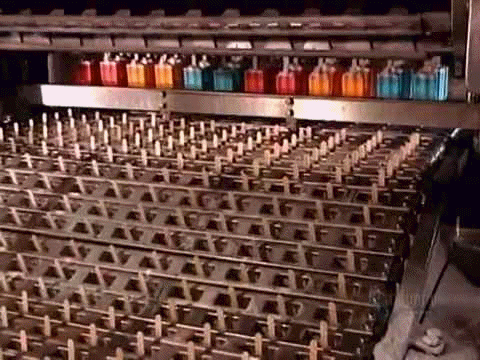

• Ice Cream - 50/50 Bars: Grippers raise the 50/50 bars away from their molds
• Ice Cream - 50/50 Bars: The bars get a quick dip in water to form an ice layer over it - it stores much better, and longer that way.

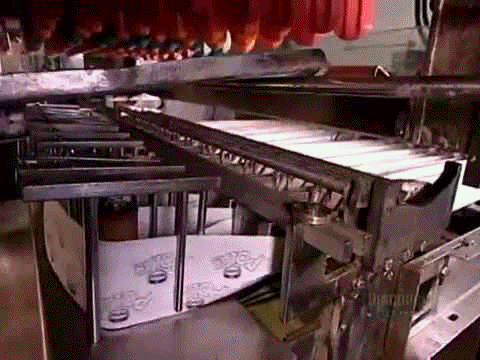

• Ice Cream - 50/50 Bars: The finished bars are dropped on a continuous line of Wrappers
• Ice Cream - 50/50 Bars: And then are Folded Over
• Ice Cream - 50/50 Bars: And sealed ... and a blade chops them apart.

Ice Cream - Cones:

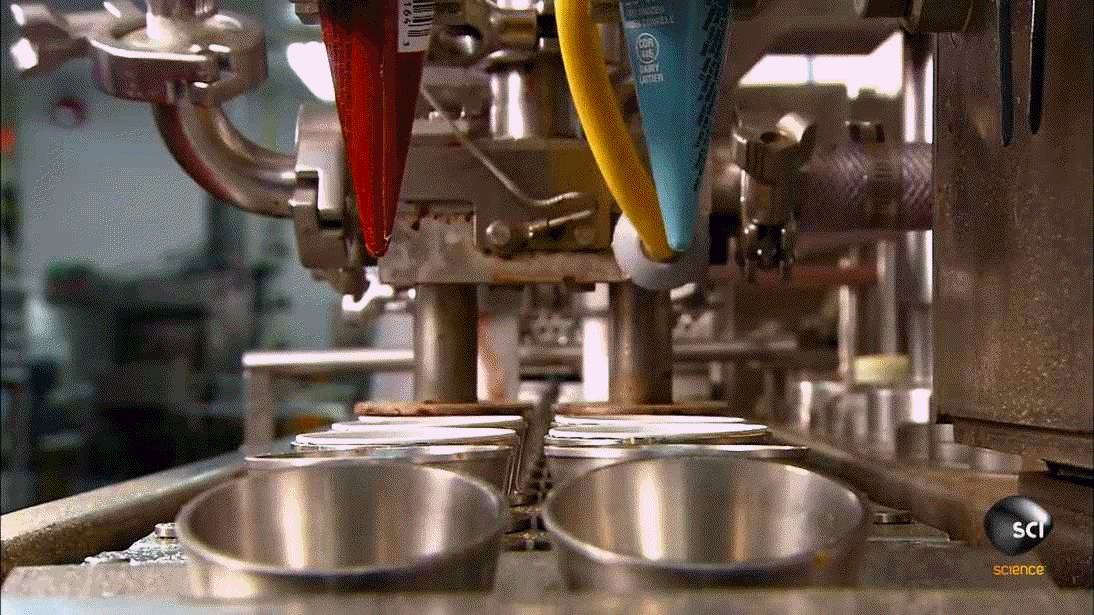

• Ice Cream Cones - Start of Production
• Ice Cream Cones - Wrapper and Cone dropped onto Line

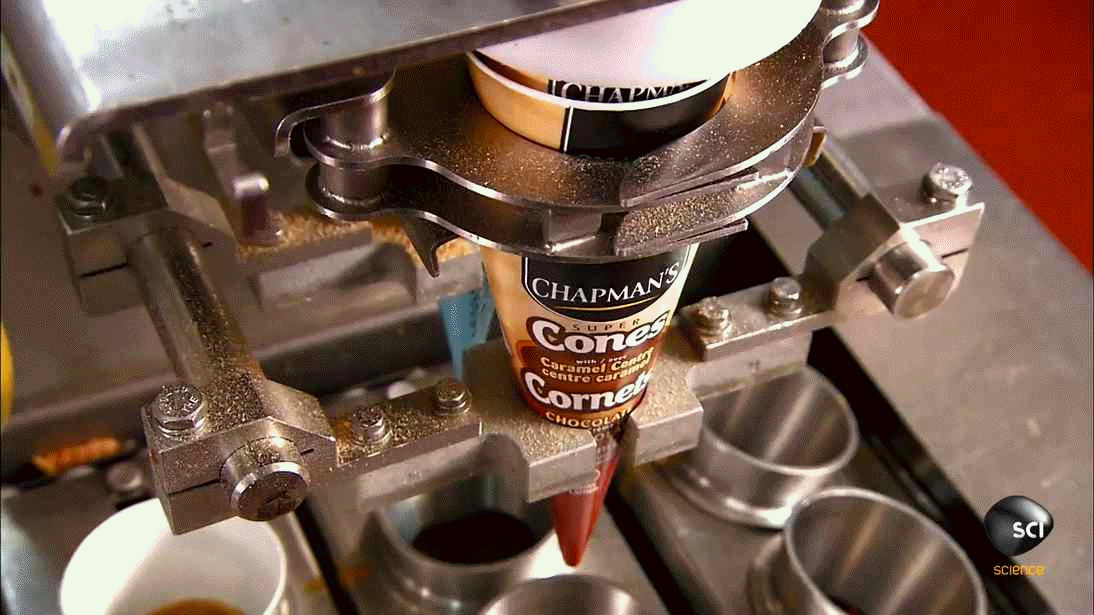

• Ice Cream Cones - How Wrappers and Cones are Fed

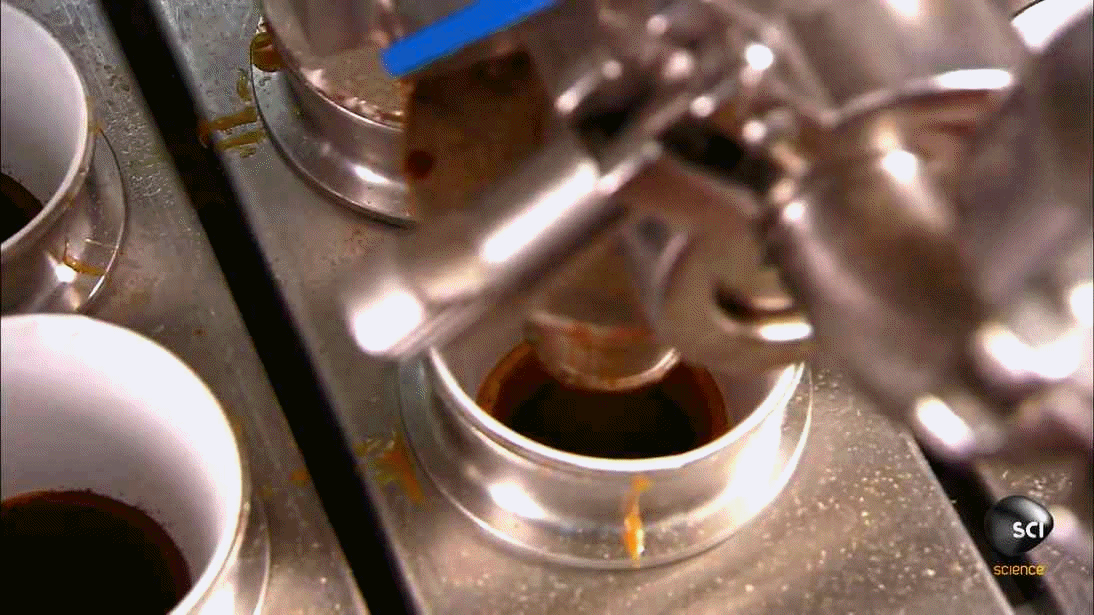

• Ice Cream Cones - Chocolate lining is sprayed: this "Bisque" keeps the cone from getting soggy in storage

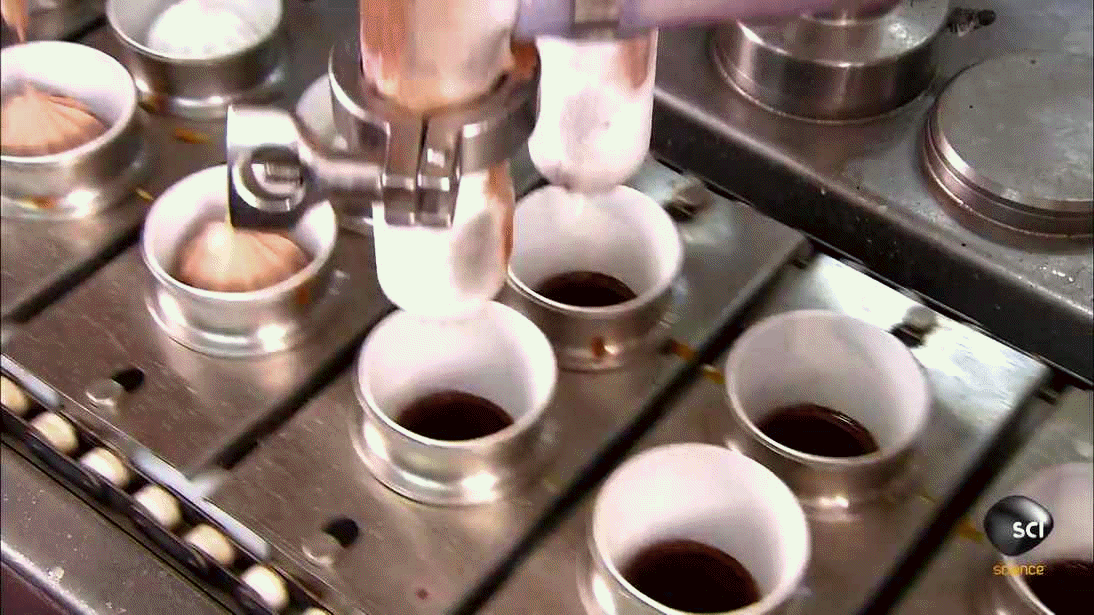

• Ice Cream Cones - Then Ice Cream is Filled into the Cone
• Ice Cream Cones - A Caramel Core of Flavor is Injected
• Ice Cream Cones - Then Chocolate syrup is Squirted on top
• Ice Cream Cones - And sprinkles are Added (Cocoa Puffs)

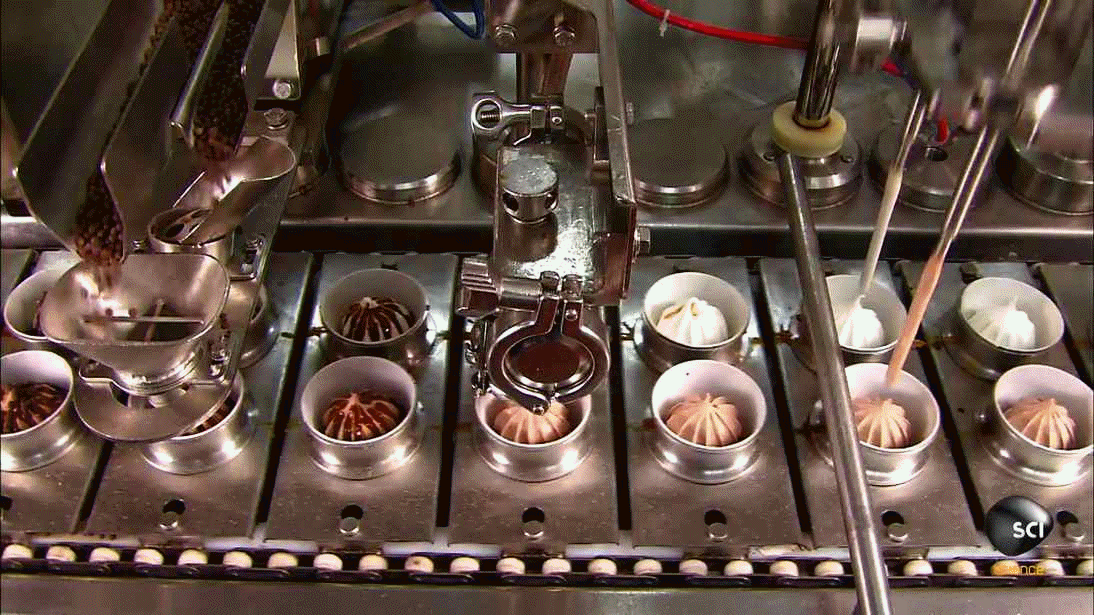

• Ice Cream Cones - Those last 3 steps shown in a Row
• Ice Cream Cones - How Syrup and Sprinkles are Added

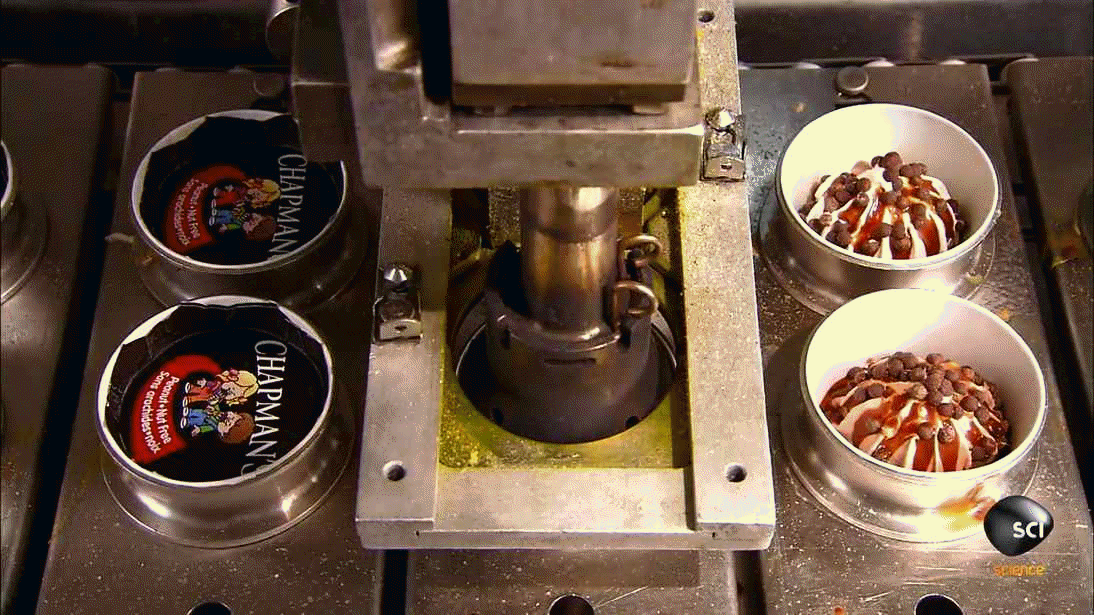

• Ice Cream Cones - A Cap is heat sealed on the packaging
• Ice Cream Cones - And Off they go to Packaging.

Ice Cream - Sandwiches:

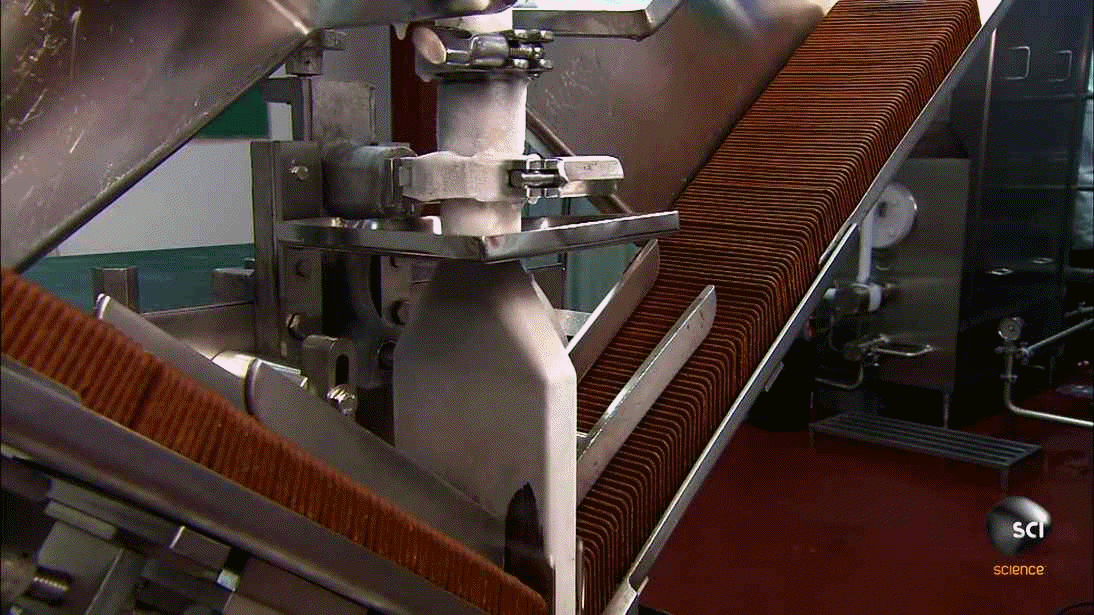

• Ice Cream Sandwiches - Sandwich wafers loaded at the top of the Production Line
• Ice Cream Sandwiches - Wafers and Ice Cream put together
• Ice Cream Sandwiches - Two wafers are Fed down at a time
• Ice Cream Sandwiches - Side View of the Sandwich Assembly
• Ice Cream Sandwiches - Sandwiches are pushed up through wrappers cut from a roll of wrappers
• Ice Cream Sandwiches - Sandwiches are sealed in wrappers and the ends folded shut
• Ice Cream Sandwiches - Wrapped

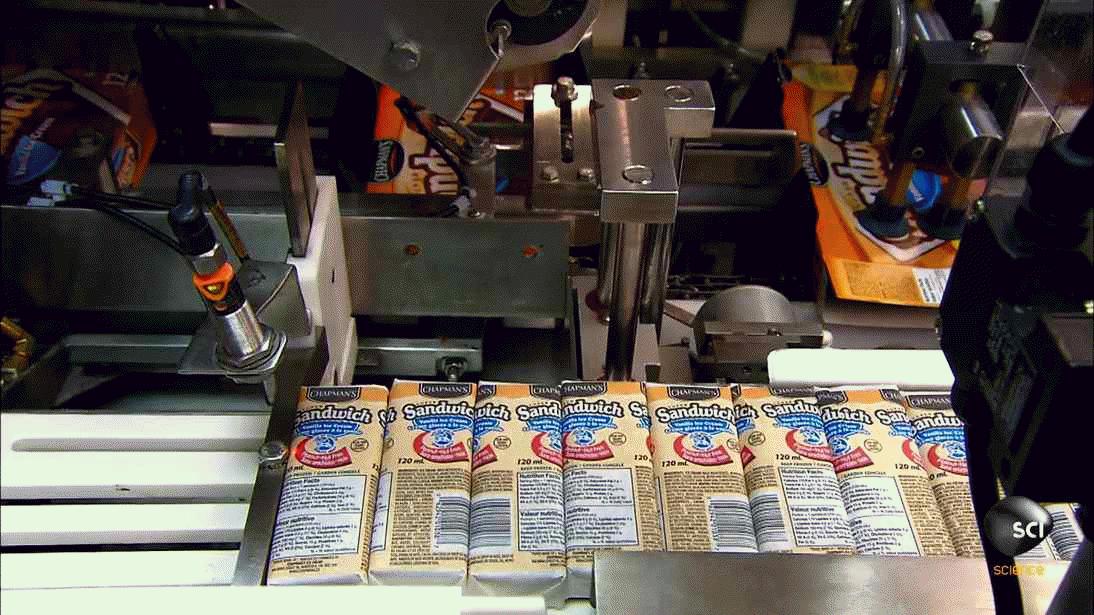

• Ice Cream Sandwiches - Being Boxed
• Ice Cream Sandwiches - The Whole Line from start to End.

Soft Pretzels:

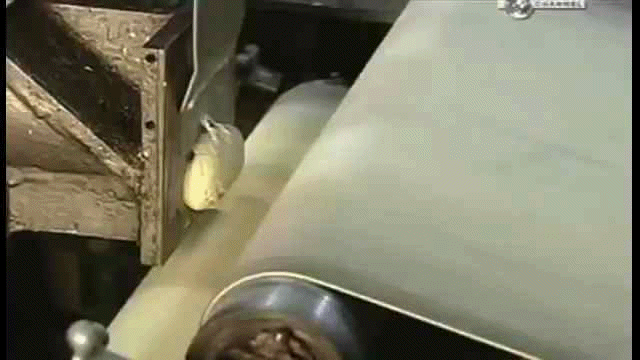

• Soft Pretzels - Dough is extruded and then chopped into dough balls by a cutter blade
• Soft Pretzels - The dough ball is rolled between belts to form it into a long "Noodle" of dough
• Soft Pretzels - 2 arms grab ends of "Noodle" and wind it around a form.

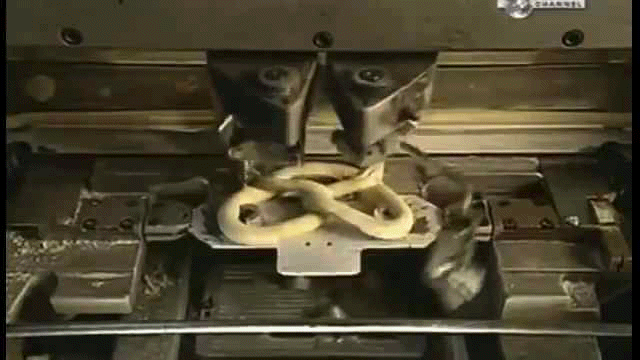

• Soft Pretzels - The Pretzel Folding ... Up Close and Slowed Down a LOT!
  I fell asleep studying this process: Be Careful!

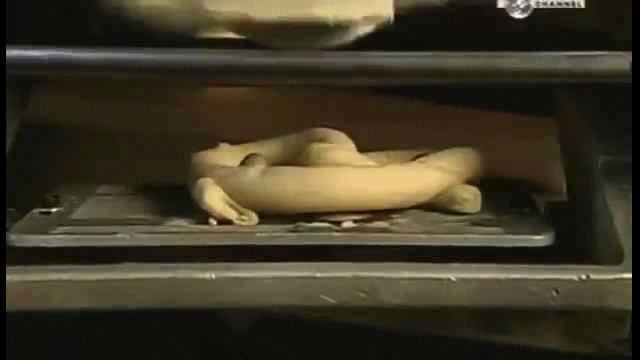

• Soft Pretzels - to help seal the twist and reshape it it is flipped over a half flip onto a plate ...
• Soft Pretzels - which gives it another half flip onto the conveyor
• Soft Pretzels - Which helps to seal the ends and reshape the pretzel

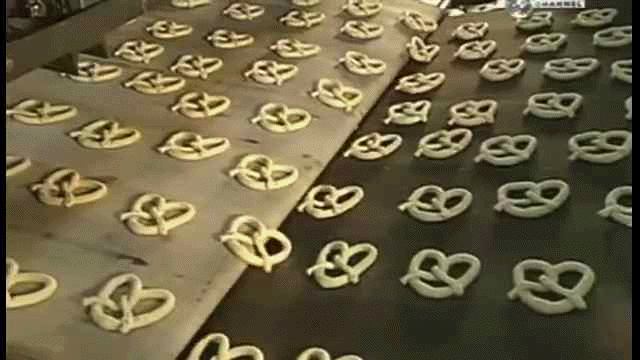

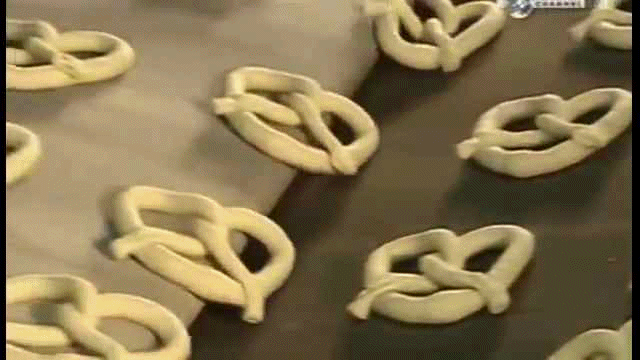

• Soft Pretzels - The Pretzels are sent on a lengthy journey on the Proofing Conveyor to let them Rise.
• Soft Pretzels - Then Transferred to another conveyor for Baking.

Chain Making Machines:

Chains - Jack:

• Jack Chain - 2 Step link folding - in high speed
• Jack Chain - A Slow Motion look at the front side
• Jack Chain - A Slow Motion look at the rear side

Chains - Swingset:

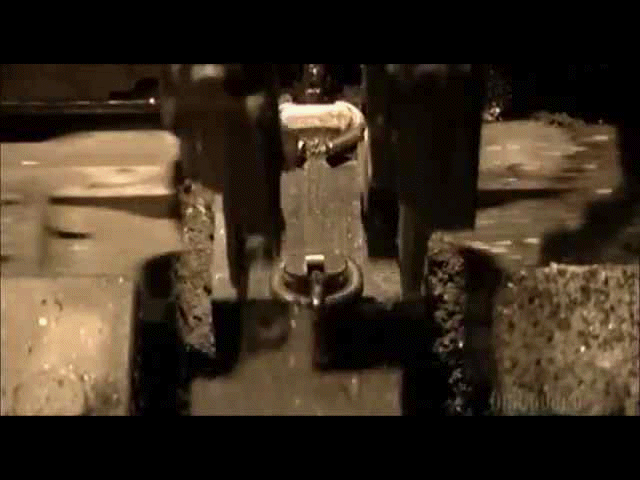

• Swingset Chain - 2 Step 2 Part: link pre folding - Then closing it onto the end of the chain

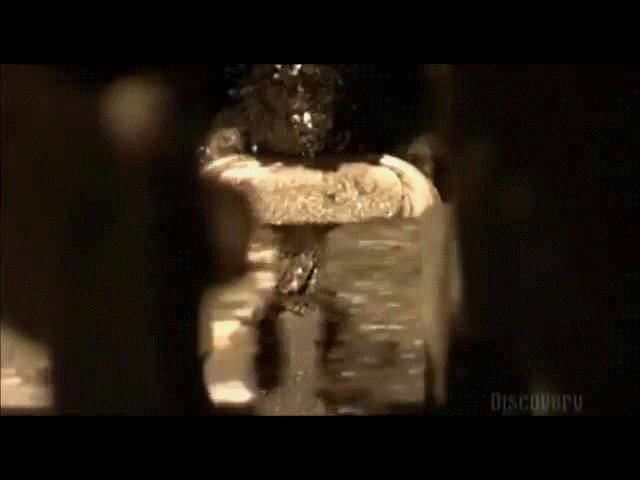

• Swingset Chain - A link is preformed but its side is left open in a gap
• Swungset Chain - A Close Up look, from the side view, at the link being pre-shaped around a link-shaped form
• Swingset Chain - A Link is slammed shut on the end of the chain - which is then grabbed and turned vertically - so the NEXT Link can be slammed on the end, Going Fast.
• Swingset Chain - A Link is slammed shut on the end of the chain - which is then grabbed and turned vertically - so the NEXT Link can be slammed on the end, in Slow Motion.
  Dangerous! Watching how chains grow can put you under. Zzzzzzzzzz!

Chains - Towing:

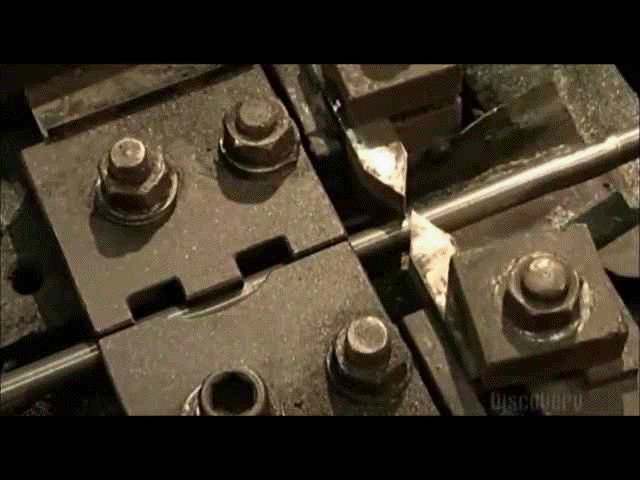

• Towing Chains - Heavy Metal Rod is pre-notched at the spot where a link is to be cut off of it

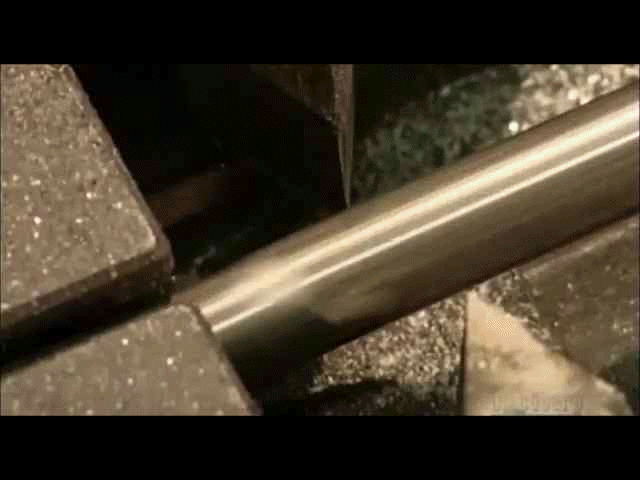

• Towing Chains - A Close Up of the above GIF

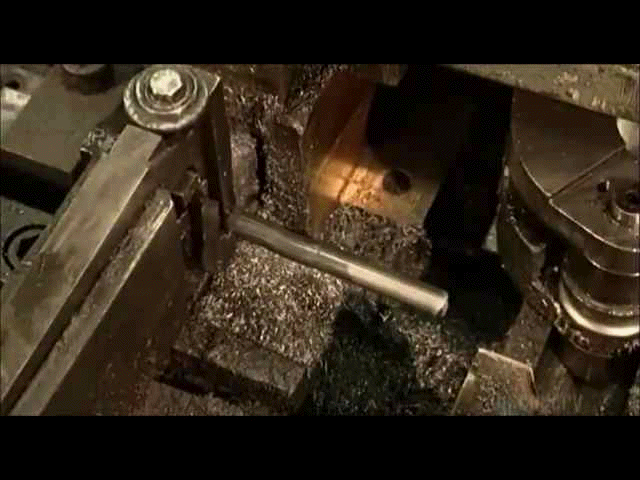

• Towing Chains - A link is chopped off at the notch

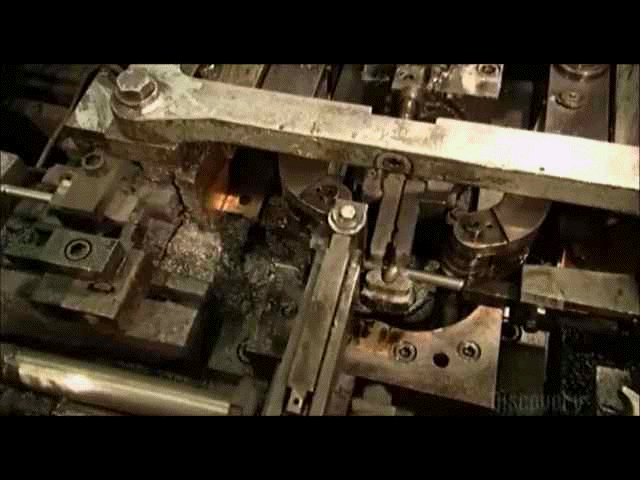

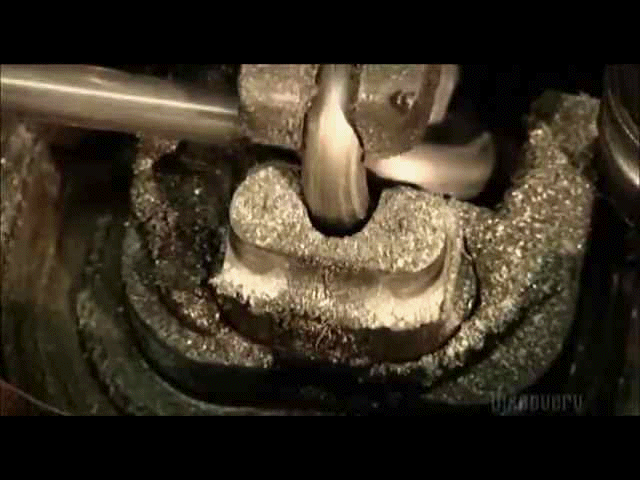

• Towing Chains - Overview of the Links being shaped around a form
• Towing Chains - A closer Look at the links being shaped as they are added to the raw chain
  Danger: Can Hypnotize susceptible people!
• Towing Chains - The Form that the links are shaped around retracts to free the new link
• Towing Chains - A gripper turns the link vertically to position it for the next link to be added
• Towing Chains - Now the Gap in each link must be welded Shut

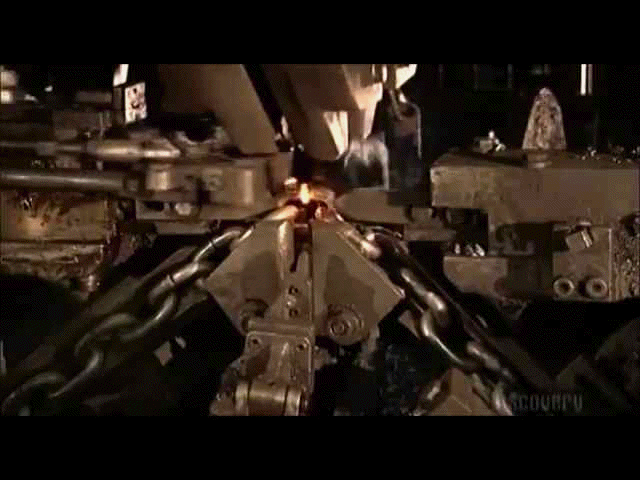

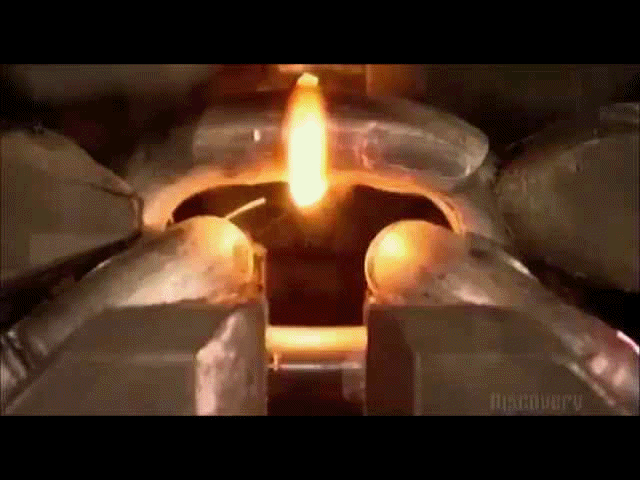

• Towing Chains - This machine clamps and heats the weld joint with high current as it welds it closed
• Towing Chains - Excess welded metal is trimmed off the face of the link
• Towing Chains - Tempering of the Chain by Induction Heating and Quenching in Liquid

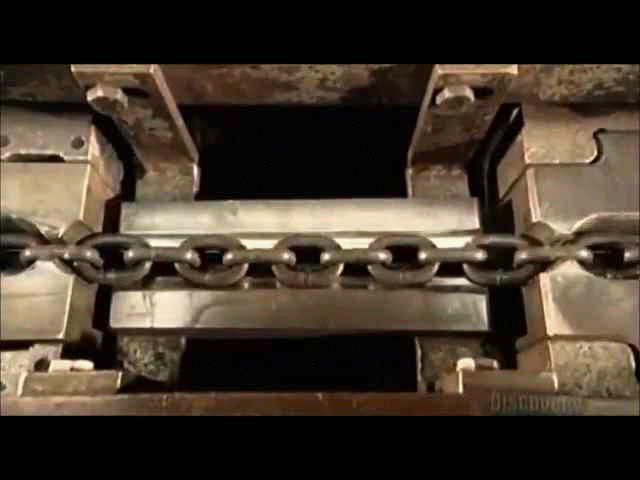

• Towing Chains - A Machine called a Calibrator pre-stretches and checks the Chain.

Glassware Making Machines:

Glass Baking Pans:

• Glass Baking Pans - A gob of molten glass drips from the furnace: wet metal shears chop it off

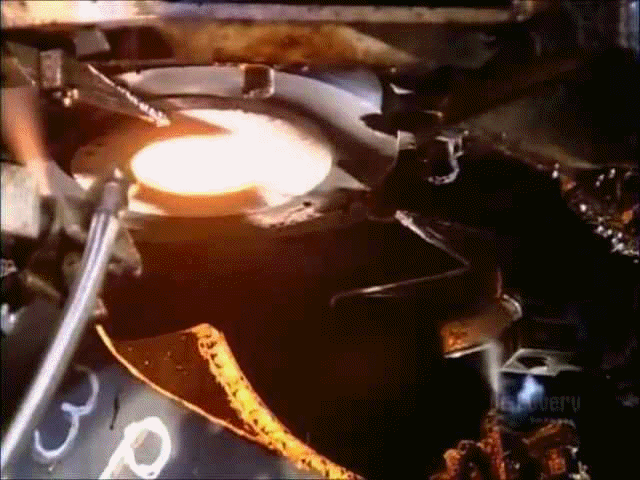

• Glass Baking Pans - A closer look at the Glass Gob being cut
• Glass Baking Pans - Slides down a chute into a mold
• Glass Baking Pans - It is stamped into a baking pan mold
• Glass Baking Pans - Air blasts cool the pan to solidify it
• Glass Baking Pans - Burners melt rough edges smooth
• Glass Baking Pans - A Close up of the rocking burners melting down any rough surface
• Glass Baking Pans - A Robot arm fetches it from a mold ...
• Glass Baking Pans - ... to the conveyor belt ...

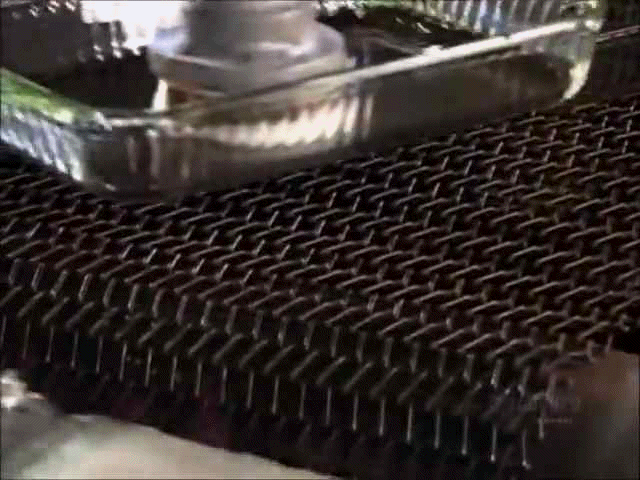

• Glass Baking Pans - Another Arm moves it to a metal conveyor running through the Tempering and Cooling Oven

Glass Lids for Pots:

• Glass Pot Lids - A gob of molten glass is molded into a Pot Lid

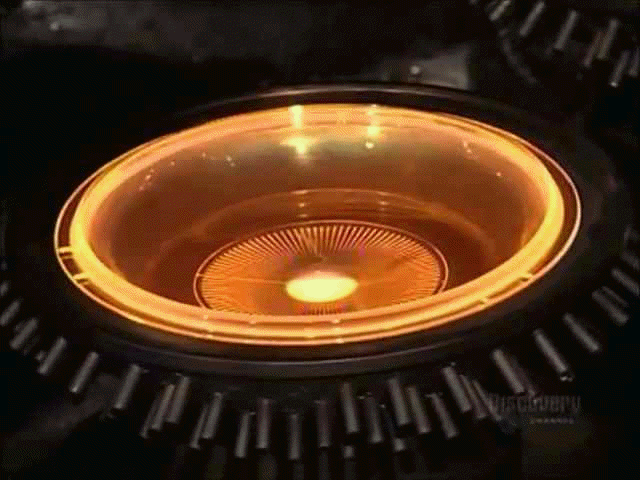

• Glass Pot Lids - Cooling in the Molds

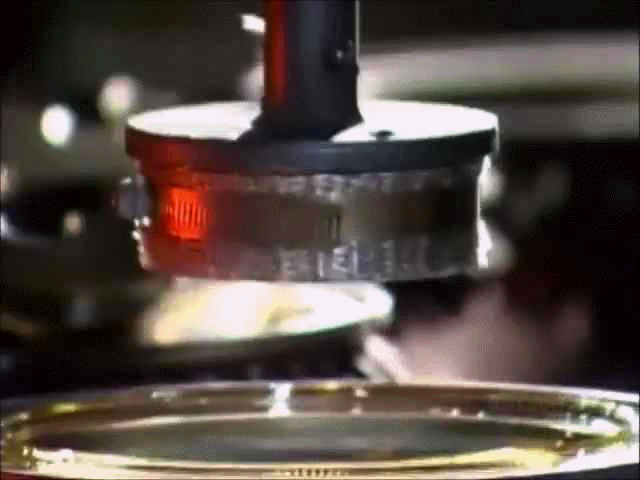

• Glass Pot Lids - The Lid released from the Mold

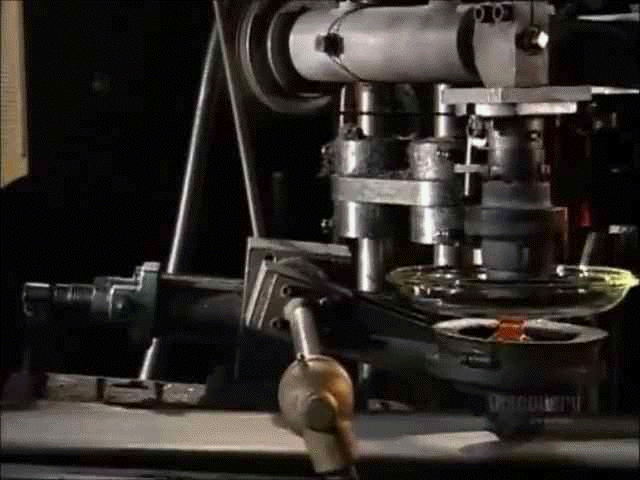

• Glass Pot Lids - A robot arm flips it over onto the conveyor belt.

Rope/Wire Rope Braiding Machines:

Rope Braiding Machines:

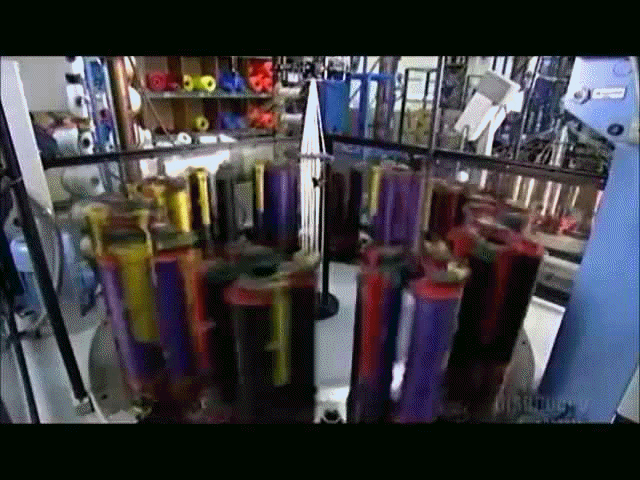

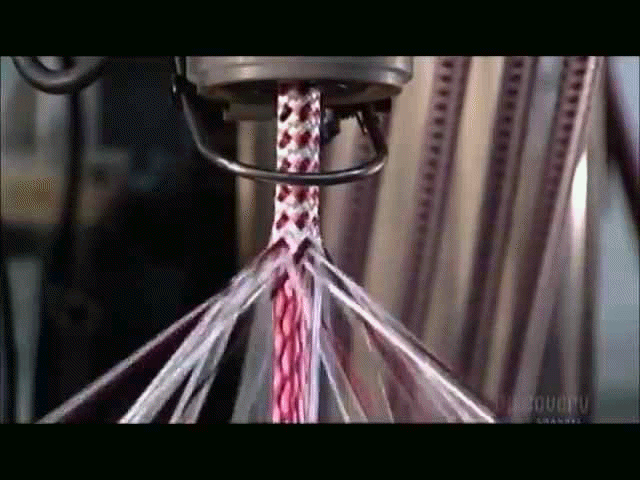

• Ropes - braiding of rope on a "Maypole Braider"
• Ropes - The weave being tightened into rope

Wire Rope Braiding Machines:

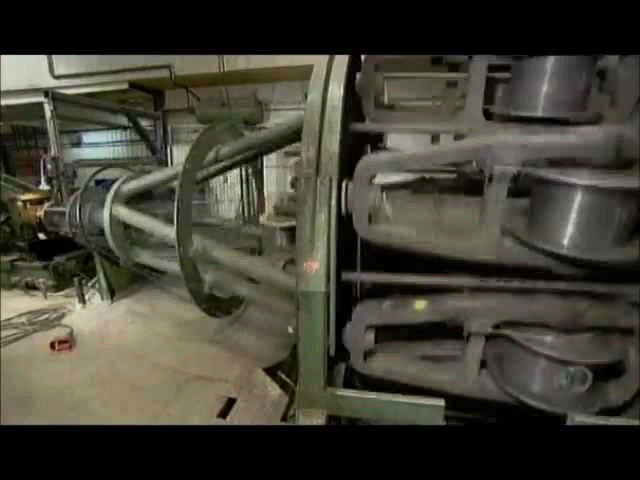

• Wire Rope - Starts with heavy wire on spools on a rotating feeder
• Wire Rope - the wire goes through guides towards a further guide plate
• Wire Rope - There are several rings of guide plates as different wires converge
• Wire Rope - finally they are all lined up close enough to run into the receiver
• Wire Rope - The Wire Rope continuously flows out of the other side of this part.

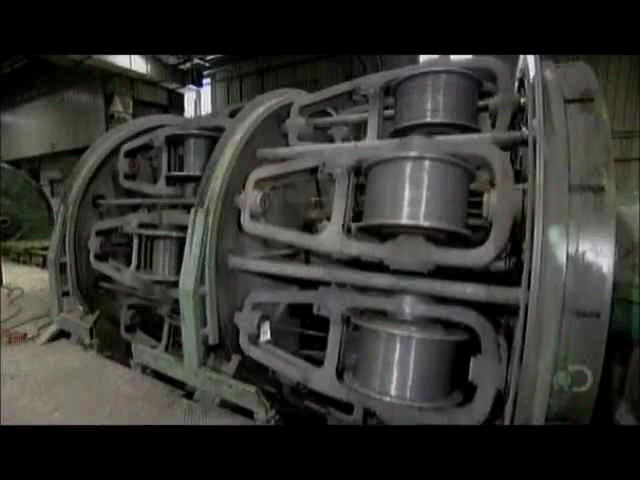

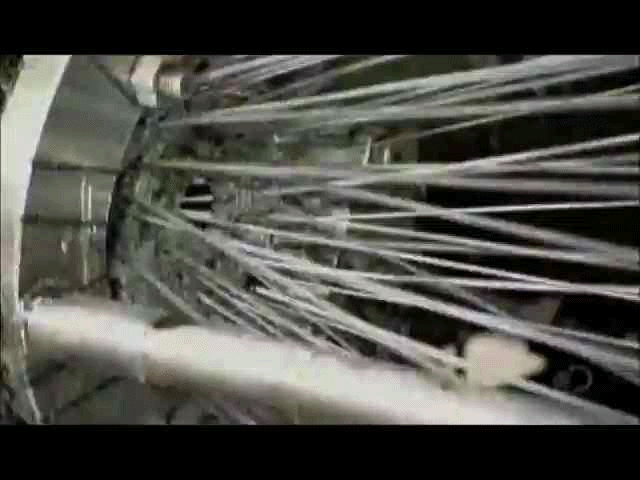

• Wire Rope - Larger Cables Start with Very Heavy wire stock on a rotating feeder ...

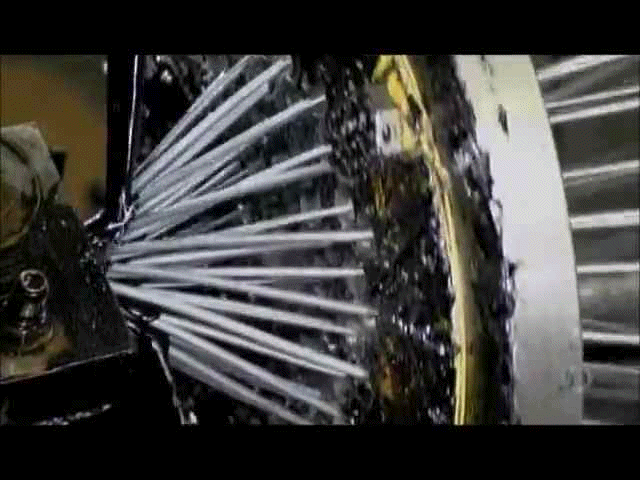

• Wire Rope - ... fed through also rotating guides on a frame to a die plate ...
• Wire Rope - the Die Plate narrows and strengthens the wires
• Wire Rope - as they are pulled through its holes

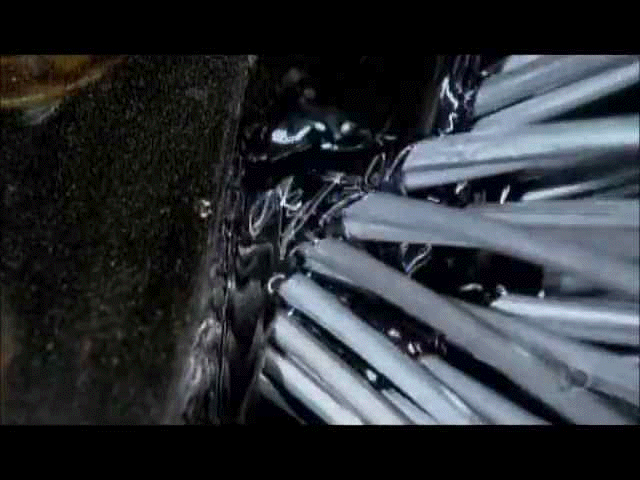

• Wire Rope - And all come down to the point where they become wire cable

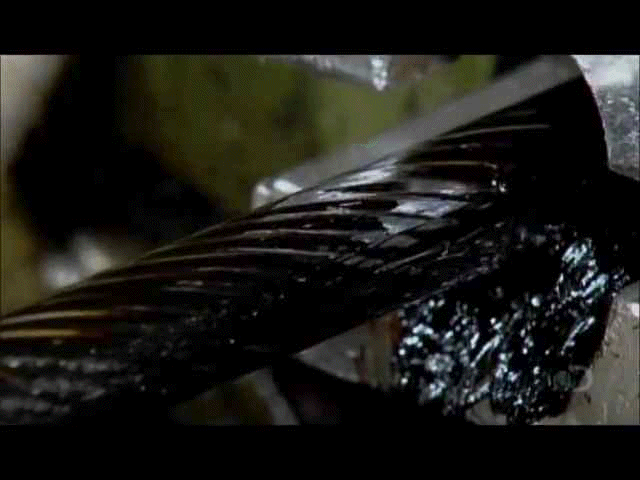

• Wire Rope - Lubricant flows around and through the cable as it is tightened
• Wire Rope - and comes out of the other end all greasy
• Wire Rope - it is wiped clean and spooled as finished Wire Cable!

Other ungrouped Manufacturing Machines:

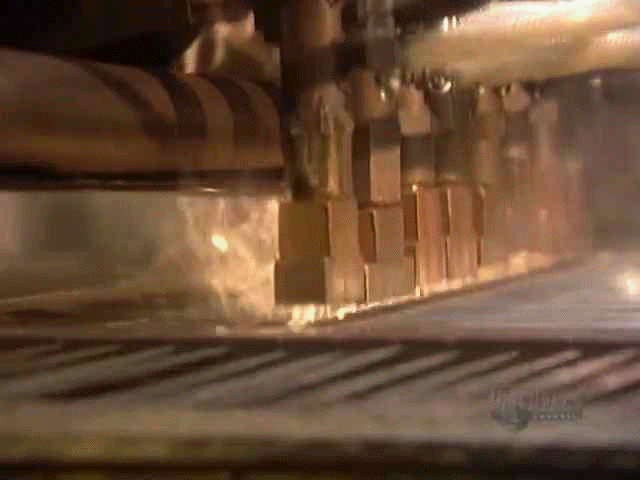

• Shopping Carts wire sides being spot welded

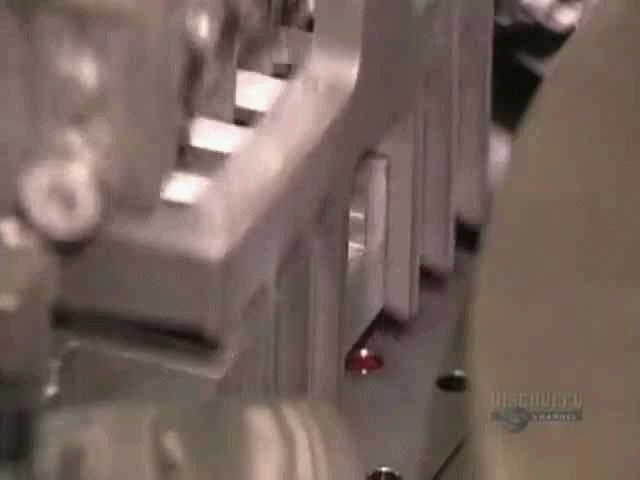

• Gel Capsule Pills - Empty pill capsules load into the Capsule Press

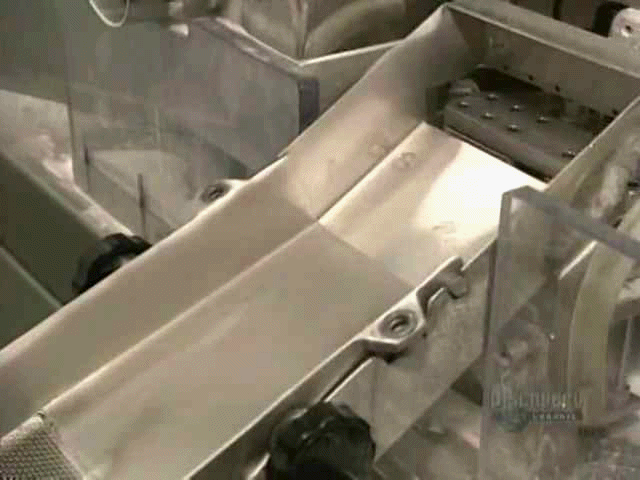

• Gel Capsule Pills - finished Gel Capsules eject from the press and are going to packaging next.

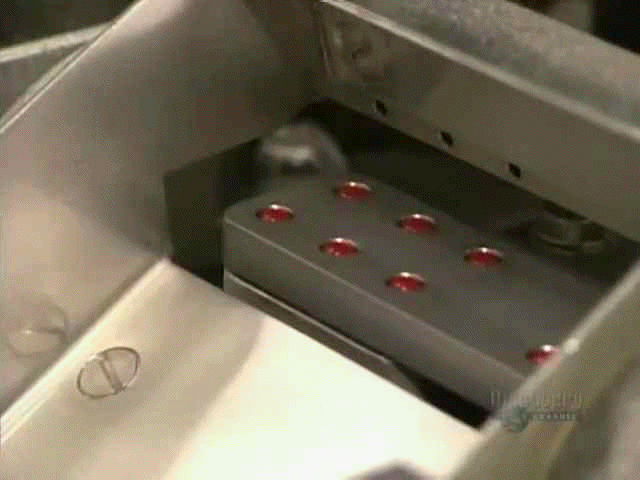

• Gel Capsule Pills - A Closer View of Capsules being ejected from the Press by metal pins.
• Glass Bulbs - being sealed off with hot jets of flame

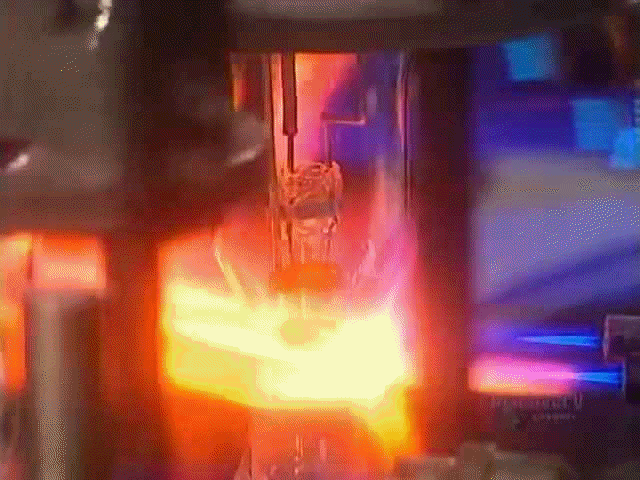

• Glass Bulbs - a closer view of the hot jets in the above GIF
• Newspapers chase each other on their conveyor
• right after 2 long bars line them up neatly
• and they go Up this way.

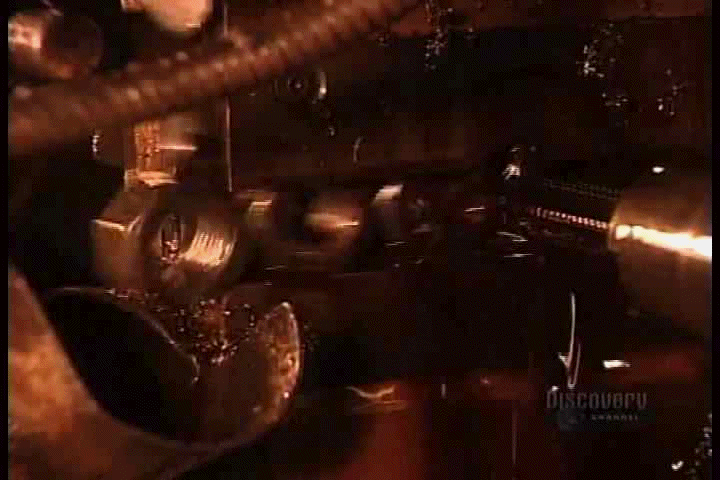

• Nuts getting their Threads installed by a Tapping Machine
• I don't know what this is doing ... sewing ... or drilling something?

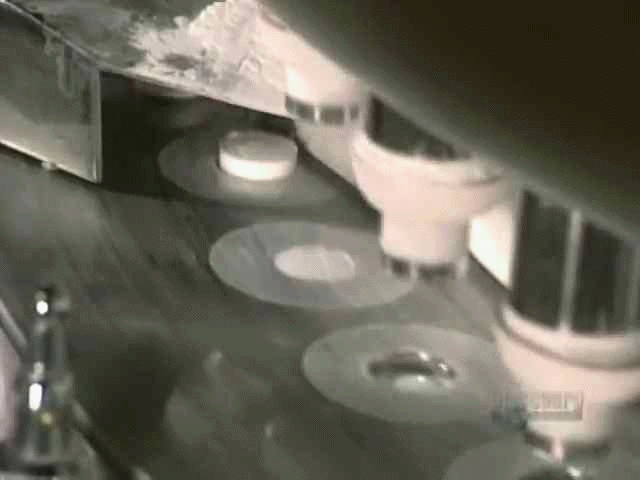

• Aspirin powder is compressed into tablets with this rotating pill press
• Red Vines on the belt being cut to size

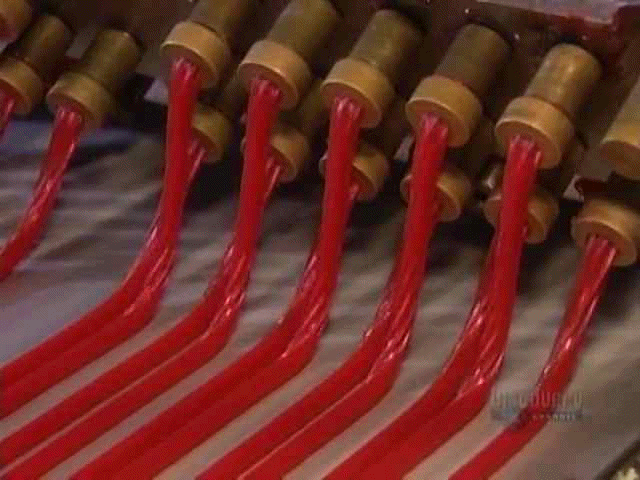

• Red Vines being twisted out onto the conveyor belt
• Steel Rod being bent at an angle - to make shopping Carts
• A Slab Saw: can cut multiple slabs of stone from one block at once

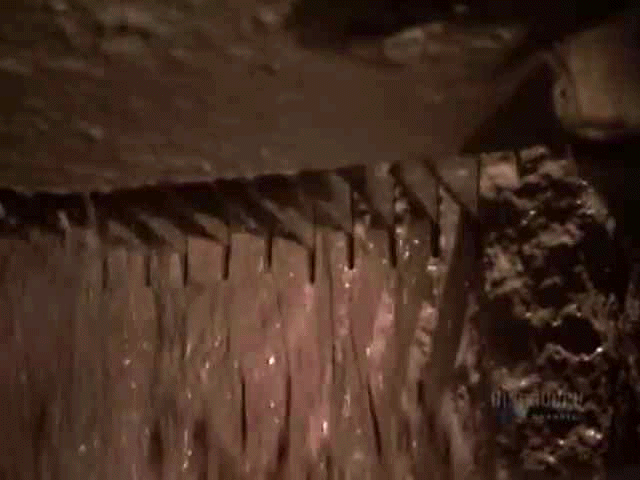

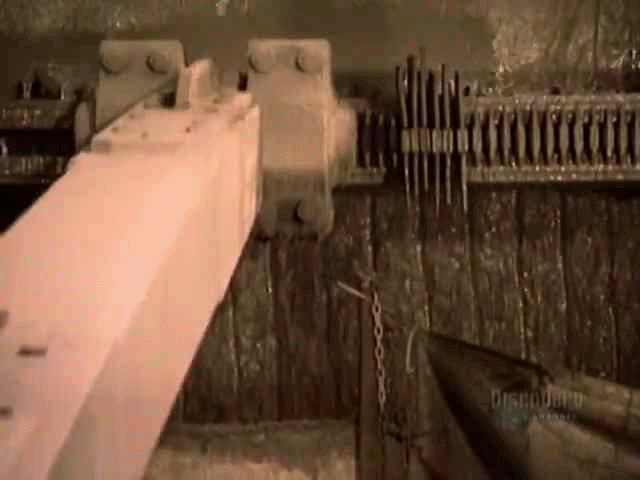

• A Slab Saw: Close up of the blades
• A Slab Saw: A Closer view of the Sawing

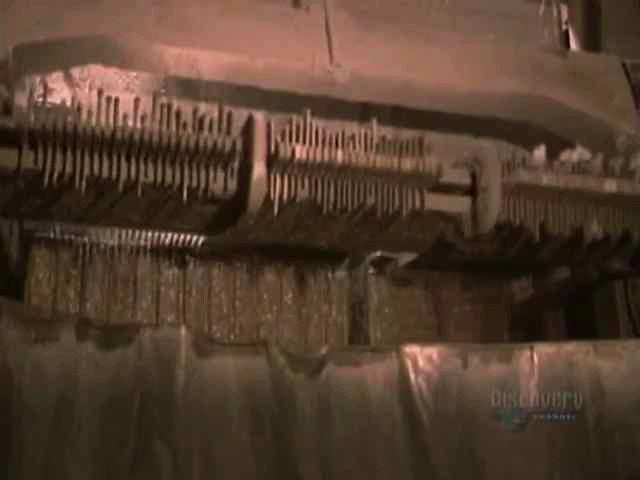

• A Slab Saw: A rear view from behind the Block.

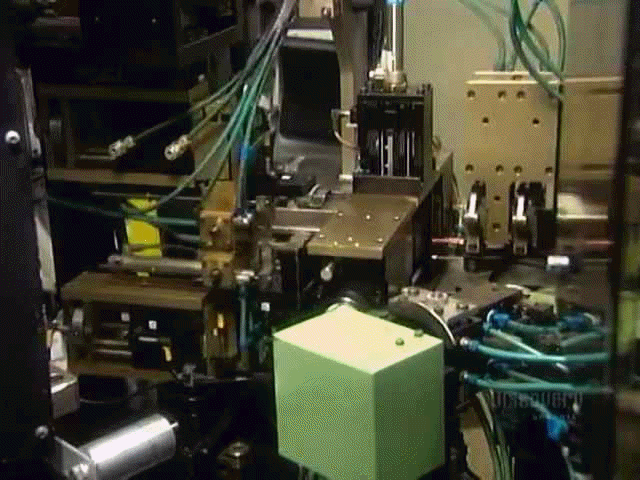

• A Machine that makes part of a wiring harness

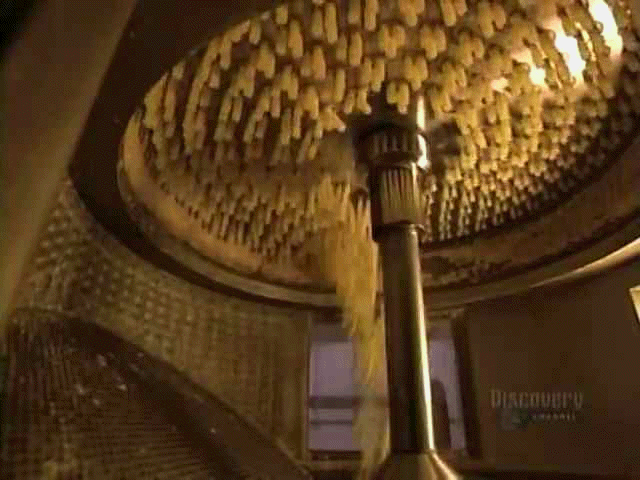

• The Machine that Extrudes Rotini (Spiral Twists Macaroni) Noodles
  Dangerous: spiral noodles fall in a spiral pattern.
